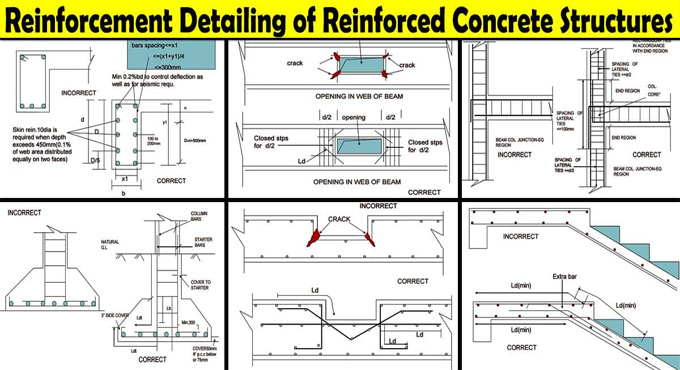

Detailing of Reinforcement in Concrete Structures

The reinforcement detailing of the reinforced concrete structures has been considered as the preparation of working drawings, which helps to show the accurate size, shape, location, type and placement of the steel reinforcement in the concrete structures.

The reinforced detailing process involves the communication of the engineering designs to the contractors, who build the concrete structure. The good detailing of the reinforcement helps to ensure that the reinforcement and the concrete structure can interact efficiently, which helps to provide satisfactory behaviour throughout the complete range of the loading process.

The reinforcement detailing of the reinforced concrete structure helps to ensure the long-term durability and strength of the reinforced concrete structure of the building, as well as enhances the load-bearing capacity and longevity of the construction structure.

Information provided by the rebars detailing process

Rebar details

There are detailed drawings for each rebars, which help to represent the size, type, and spacing of the rebars. The rebar details also include the detailed data-driven representation of bends, fixtures or hooks to go in the designs. Thus, the rebar details help to assure the accuracy and strength of the concrete structure.

Rebar schedules

The rebar schedule refers to the complete, organised list of the reinforcing bars, which provides the complete details of the rebars, as well as ensuring the presence of the required construction materials to be used in the construction process.

Bar bending schedules

The rebars detailing service also includes the bar bending schedules, which have been prepared to list the bars that are not to be cut and bent to be placed in the concrete structure. The bar-bending schedule also helps to ensure that the bars are present in the right size and fit appropriately in the designated spot.

Clear cover

The reinforcement detailing services also include the clear cover, which helps to depict the details of the space among the outer concrete surface and the closest rebar unit. This clear cover is important to maintain the effectiveness of the reinforcing bars, as well as to protect the bars against rusting or corrosion.

Lap lengths

The information given by the rebars detailing services helps with the smooth conduction of the rebar estimation process, thus deciding how the rebars have been lapped in certain structural designs.

Anchorage details

The reinforcement detailing services also provide the anchorage details or the length details of the rebars, which are required to build stress in the rebars. The anchorage details also help to provide the structural notes to the rebar estimators, which helps to identify the length and patterns of the rebars that have been anchored into the concrete foundation of the construction structure.

Location and spacing

The rebars detailing also helps to provide the complete details regarding the placement of the rebars within the concrete structures.

Structural notes

The rebars detailing includes the structural key notes regarding the structural designs, which help to provide detailed information about the construction procedure and the replacement of the rebars.

Importance of rebars detailing in construction

In the case of a building structure that has been constructed without any kind of rebars detailing, it has a higher chance of facing hazards against any type of natural disasters or operational disasters.

The reinforcement detailing process in the building project also helps to ensure the proper installation of the steel bars in the formwork, which helps to cut down the risks of material cracking and degradation. The accurate installation of the rebars detailing in the concrete structures also helps to offer higher structural stability and integrity to the entire building structure.

Key advantages of the rebars detailing process in a construction project

Improving construction quality

The overall construction quality has been increased by implementing the rebars detailing in the construction work. More precise rebar drawings have been provided by the rebars detailing services, which helps to ensure the accurate placement of the reinforced steel within the concrete structure.

Improving collaboration

Through the detailed reinforcement services, effective project management has been promoted, which helps to facilitate collaboration among the stakeholders. The reinforcement detailing services also help to provide clear instructions on the joint details and the reinforced concrete elements, which helps to streamline the construction workflow, as well as ensuring the timely completion of the construction project.

Cost-effective feature

The rebars detailing services enable the contractors and engineers to optimise the accurate distribution and placement of the steel bars, which helps to reduce the installation cost. This cost-effective feature also helps to minimise the chances of costly errors and reduces the waste in the construction work.

To learn more, watch the following video tutorial.

Video Source: Prokon Geek (Civil Engineering)

Facilitating the prefabrication process

The rebars detailing services also help to allow the off-site prefabication of the construction components, which helps to reduce the on-site labour and enhances the construction productivity.
